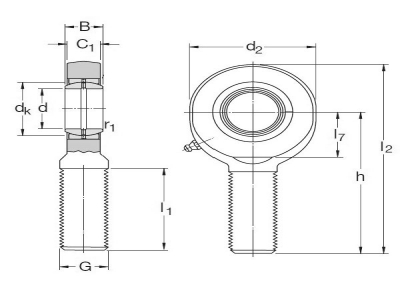

SA 70 ES-2RS
Description:
d(mm):70
d2(mm):162
B(mm):49
G(mm):M 72x4
C1(mm):43
quality(kg):10
- Product Details
- Make an Inquiry
Rod ends consist of an eye-shaped head with integral shank which forms a housing for a spherical plain bearing. As a rule, rod ends are available with left or right-hand female (internal) or male (external) threads according to ISO 965/1:1980. Where rod ends are needed for specific applications - primarily those where a rod end is attached to the end of a piston rod or at the base of a hydraulic cylinder - rod ends are available with slotted shank and compressible threaded section or with a "welding shank" i.e. a shank suitable for welding to another component.
